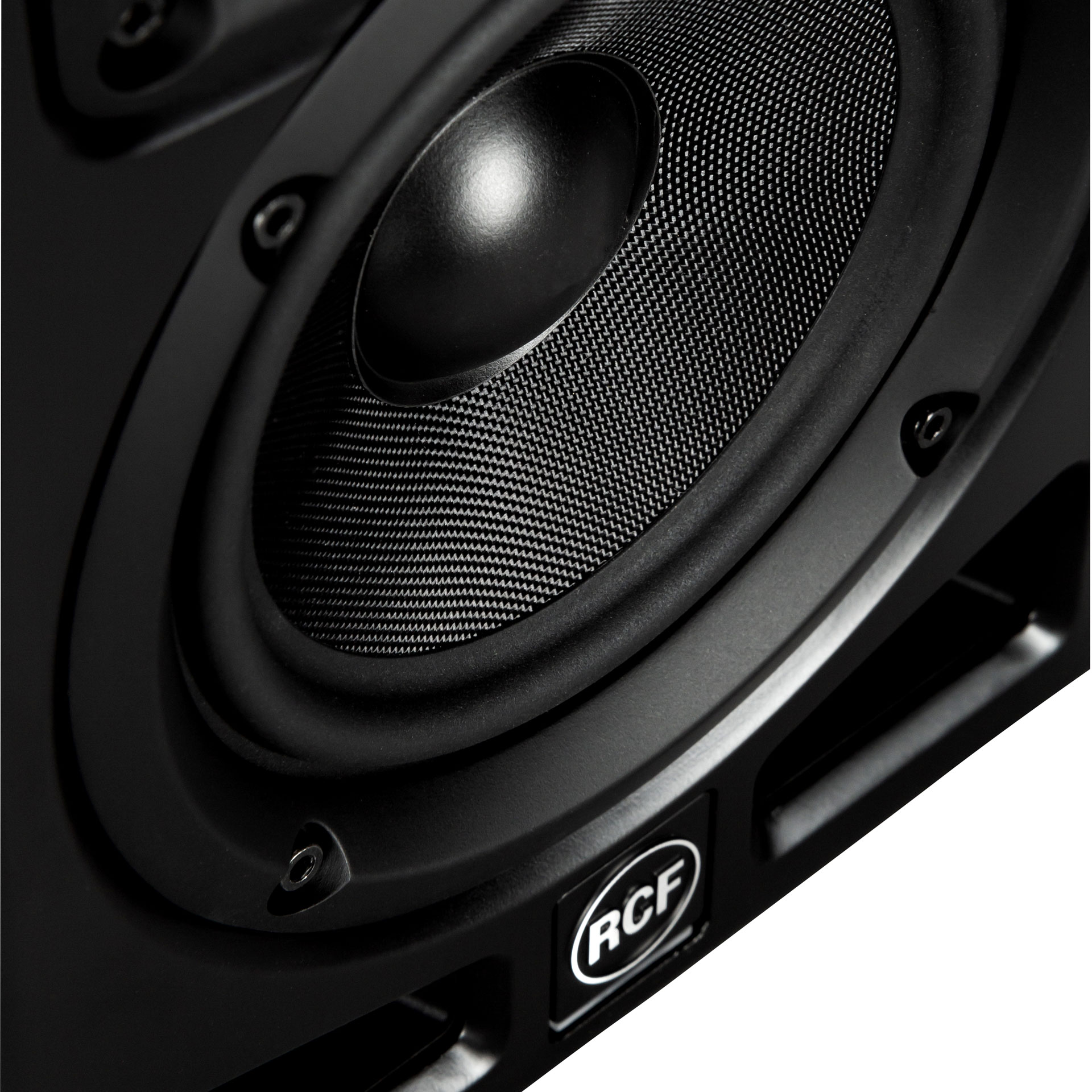

POWERFUL, COMPOSITE-CONE WOOFER
The AYRA PRO low-frequency drivers are accurately designed for a tight and true reproduction. The voice coil winding length is optimized for an extended low-frequency range. The composite fiberglass membrane cone design is the best choice for rigidity, damping and performance durability.
POTENT POWER AMPLIFIERS
Focus your creativity on your music at any volume. All AYRA PRO models are provided with high power and low distortion Two Class-D True Active low distortion amplifiers; the internal limiters will protect you from extreme clippings that can damage the transducers.
A NEW PERSPECTIVE ON LINEARITY
AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.
All models are designed with FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. A dedicated powerful internal DSP optimizes frequency response and dynamics with exclusive RCF FiRPHASE processing.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz
MAX SPL @ 1M:
107 dB
HORIZONTAL COVERAGE ANGLE:
110°
VERTICAL COVERAGE ANGLE:
70°
Transducers
DOME TWEETER:
1.0” neo, 1.0” v.c
WOOFER:
5.0”
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack, RCA
INPUT SENSITIVITY:
-2 dBu
Processor section
CROSSOVER FREQUENCIES:
2000Hz
LIMITER:
Soft Limiter
Power section
TOTAL POWER:
200 W Peak, 100 W RMS
HIGH FREQUENCIES:
50 W Peak, 25 W RMS
LOW FREQUENCIES:
150 W Peak, 75 W RMS
CONNECTIONS:
XLR, Jack, RCA
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
MDF
COLOR:
Black – RAL 9005
Size
HEIGHT:
300 mm / 11.81 inches
WIDTH:
185 mm / 7.28 inches
DEPTH:
243 mm / 9.57 inches
WEIGHT:
4.3 kg / 9.48 lbs
Shipping informations
PACKAGE HEIGHT:
400 mm / 15.75 inches
PACKAGE WIDTH:
339 mm / 13.35 inches
PACKAGE DEPTH:
261 mm / 10.28 inches
PACKAGE WEIGHT:
6 kg / 13.23 lbs
